PPGI Pre-Painted Galvanized DX52D+Z

Introduction

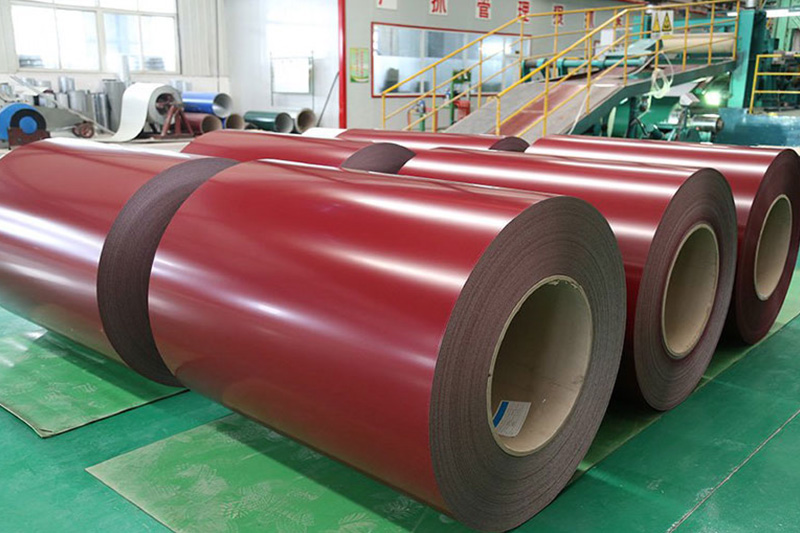

PrePainted Galvanized Steel Coil (PPGI) and Pre-Painted Galvalume Steel Coil (PPGL) is a kind of building materials, with galvanized sheet and aluzinc sheet as the substrate, after pretreatment (degrease and chemical treatment) and liquid dope with several layers of color, then firing and cooling, finally the palte steel is called pre-painted galvanized steel coil (PPGI) or pre-painted galvalume steel coil(PPGL).

As the layer bears different colors, it is also known as color coated steel sheet. Through the combined use of diverse paints and base substrates, we select colors and material properties that meet the specific needs.

Painting information as following:

Top Paint: PVDF, HDP, SMP, PE(Polyester), PU.

Prepainted Galvanized Steel Coil has many functions like decorative (color ) machinability, weather resistance, scratch resistance, stain resistance, chemical resistance and adhesion resistance.

Primer Paint: Polyurethane, epoxy, PE.

The functions of this layer including machinability, corrosion resistance, adhesion and scratch resistance.

Back Paint: Epoxy, modified polyester.

Specification

Product Name	Prepainted Galvanized Steel Coils（PPGI）	Pre-Painted Aluzinc Steel Coils (PPGL)
Thickness	0.11-0.8mm	0.11-0.8mm
Width	720mm-1250mm	720-1250mm
Coating mass	30g/m2-275g/m2 (Zinc)	30g/m2-185g/m2 (AZ)
paint	Stand polyester(PE),Smp,HDP,PVDF	Polyester(PE),Smp,HDP,PVDF
COLOR	RAL SCAL	RAL SCALE
COIL INNER DIAMETER	508mm or 610mm	508mm or 610mm
Coil weight	3mt-5mt	3mt-5mt
Base meterial	Hot-dip galvanized steel cold rolled	Hot-dip Aluzinc steel cold rolled

PRE-PAINTED GALVANIZED STEEL COIL
	ASTM A755M-03	EN10169:2006	JIS G3312:2012
COMMERCIAL QUALITY	CS	DX51D+Z	CGCC
STRUCTURE STEEL	SS GRADE 230	S220GD+Z	CGC340
	SS GRADE255	S250GD+Z	CGC440
	SS GRADE275	S280GD+Z	CGC490
	SS GRADE340	S320GD+Z	CGC570
	SS GRADE550	S350GD+Z
		S550GD+Z

PRE PAINTED ALUZINC STEEL COIL
	ASTM A755M-03	EN10169:2006	JIS G3322:2012
COMMERCIAL QUALITY	CS	DX51D+Z	CGLCC
STRUCTURE STEEL	SS GRADE 230	S220GD+Z	CGLC340
	SS GRADE255	S250GD+Z	CGLC440
	SS GRADE275	S280GD+Z	CGLC490
	SS GRADE340	S320GD+Z	CGLC570
	SS GRADE550	S350GD+Z
		S550GD+Z

Quality Control

1). Production scheduling:

All quality details required by customers, such as (RAL)color, glossiness, paint film thickness, weight per meter, width, roll length, roll weight, package as well as tolerance and delivery time, should be clearly recorded in the production sheet.

2). Following up manufacturing:

According to the requirements of the production schedule and the workshop operation standards, the production will be completed step by step to ensure that the quantity, quality, packing and delivery time are in conformity with the requirements of the buyers and relevant international standards.

3). Quality Inspection:

All goods will be inspected after finishing manufacture, a series of tests will be carried out, such as pencil hardness test, scribing hardness (also known as scratch hardness test), cut test, coating thickness measure, glossiness measure, impact test, moisture resistance test, MEK test, and visible spectrophotometer test. Survey report will be issued and presented to clients.

We ensure that all products conform to the requirements of the order and relevant international standards.
