Product Description

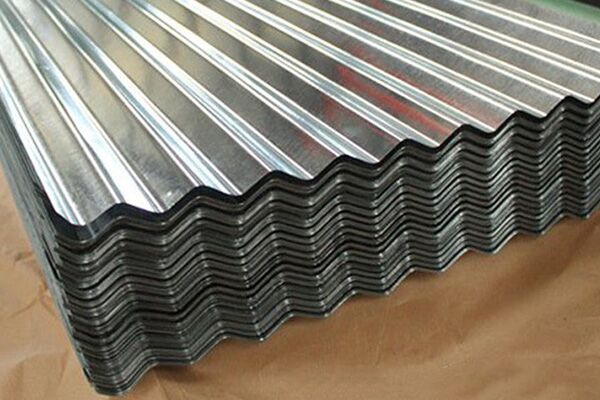

Galvanized sheets are often used for building roofs and wall coverings to provide waterproofing and anti-corrosion. The surface of galvanized sheet has excellent corrosion resistance and can withstand various harsh weather conditions and environments, maintaining its appearance and long life.
Grade:
DX51D+Z、DX52D+Z、DX53D+Z、DX54D+Z、DX56D+Z
Size:
Thickness: 0.3mm to 3mm
Length is from 100mm to 600mm. Width is from 100mm to 200mm
Standard:
GB/T3091 – 2001, BS 1387 – 1985, DIN EN10025, EN10219, JIS G3444:2004, ASTM A53 SCH40/80/STD, BS – EN10255 2004
Packing:
Bundle, or with all kinds of colors PVC or as your requirements
Parameters
|
Technical Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
|
|
Steel Grade |
Dx51D, Dx52D, Dx53D, DX54D
|
|
Thickness
|
customer’s requirement
|
|
Width
|
according to customer’s requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|
Zinc Coating
|
30-275g/m2
|
|
Surface Treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
|
|
Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|
Quality
|
Approved by SGS,ISO
|
|
ID
|
508mm/610mm
|
|
Coil Weight
|
3-20 metric ton per coil
|
|
Package |
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer’s requirement |
|
Export market
|
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
|
Features
1. Purpose of Galvanized Steel Sheet
1) Construction industry: roofs, balcony panels, window sills, kiosks, warehouses, rolling shutter doors, heaters, rainwater pipes, etc.
2) Household appliances: refrigerators, washing machines, air conditioners, microwave ovens, toasters, copiers, vending machines, electric fans, vacuum cleaners, etc.
Furniture industry: lampshades, wardrobes, tables, bookshelves, medical equipment, etc.
3) Transportation industry: car ceilings, car shells, carriage panels, tractors, trams, containers, highway walls, ship bulkheads, etc.
4) Other aspects: Color-coated steel plates such as musical instrument casings, trash cans, photographic devices, meters, etc. are based on hot-dip galvanized sheets, hot-dip galvanized sheets, electro-galvanized sheets, etc., and have been surface pretreated.
Steel Plate Gauge Table
| Gauge Thickness Comparison Table | ||||
| Gauge | Mild | Aluminum | Galvanized | Stainless |
| Gauge 3 | 6.08mm | 5.83mm | 6.35mm | |
| Gauge 4 | 5.7mm | 5.19mm | 5.95mm | |
| Gauge 5 | 5.32mm | 4.62mm | 5.55mm | |
| Gauge 6 | 4.94mm | 4.11mm | 5.16mm | |
| Gauge 7 | 4.56mm | 3.67mm | 4.76mm | |
| Gauge 8 | 4.18mm | 3.26mm | 4.27mm | 4.19mm |
| Gauge 9 | 3.8mm | 2.91mm | 3.89mm | 3.97mm |
| Gauge 10 | 3.42mm | 2.59mm | 3.51mm | 3.57mm |
| Gauge 11 | 3.04mm | 2.3mm | 3.13mm | 3.18mm |
| Gauge 12 | 2.66mm | 2.05mm | 2.75mm | 2.78mm |
| Gauge 13 | 2.28mm | 1.83mm | 2.37mm | 2.38mm |
| Gauge 14 | 1.9mm | 1.63mm | 1.99mm | 1.98mm |
| Gauge 15 | 1.71mm | 1.45mm | 1.8mm | 1.78mm |
| Gauge 16 | 1.52mm | 1.29mm | 1.61mm | 1.59mm |
| Gauge 17 | 1.36mm | 1.15mm | 1.46mm | 1.43mm |
| Gauge 18 | 1.21mm | 1.02mm | 1.31mm | 1.27mm |
| Gauge 19 | 1.06mm | 0.91mm | 1.16mm | 1.11mm |
| Gauge 20 | 0.91mm | 0.81mm | 1.00mm | 0.95mm |
| Gauge 21 | 0.83mm | 0.72mm | 0.93mm | 0.87mm |
| Gauge 22 | 0.76mm | 0.64mm | 085mm | 0.79mm |
| Gauge 23 | 0.68mm | 0.57mm | 0.78mm | 1.48mm |
| Gauge 24 | 0.6mm | 0.51mm | 0.70mm | 0.64mm |
| Gauge 25 | 0.53mm | 0.45mm | 0.63mm | 0.56mm |
| Gauge 26 | 0.46mm | 0.4mm | 0.69mm | 0.47mm |
| Gauge 27 | 0.41mm | 0.36mm | 0.51mm | 0.44mm |
| Gauge 28 | 0.38mm | 0.32mm | 0.47mm | 0.40mm |
| Gauge 29 | 0.34mm | 0.29mm | 0.44mm | 0.36mm |
| Gauge 30 | 0.30mm | 0.25mm | 0.40mm | 0.32mm |
| Gauge 31 | 0.26mm | 0.23mm | 0.36mm | 0.28mm |
| Gauge 32 | 0.24mm | 0.20mm | 0.34mm | 0.26mm |
| Gauge 33 | 0.22mm | 0.18mm | 0.24mm | |
| Gauge 34 | 0.20mm | 0.16mm | 0.22mm | |
DETAILS SHOW
Standard length 1 m or 6m
Cutting length from 1 – 6 meters. We can provide American standard length 10ft, 8ft.
Or we can open mold to customize product length.
Standard Thickness & Guaranteed Quality
The thickness is produced in accordance with the contract.
Our company process the thickness tolerance is within ±0.01mm.
Enough Zinc Coating.
Zinc layers can be produced from 30g to 275g and can be supplied with hot dip galvanizing, electric galvanizing and pre – galvanizing.
Provides a layer of zinc production support after inspection report.
Applications
Our galvanized, galvalume and pre-painted steel products are widely used across various industries, including but not limited to:
📦 Packaging & Transportation
✅ Packaging Details
- Waterproof plastic film for moisture & rust protection
- Kraft paper or galvanized wrapping
- Edge protection with metal corners or rubber pads
- Secured with steel straps (inner & outer)
- Wooden or steel pallets available
🚚 Transportation Options
- Full container or bulk shipping (FOB / CIF / CFR)
- Truck transport to port or designated warehouse
- Palletized LCL shipping available for small orders
- Complete shipping documents provided (Packing List, Invoice, CO, etc.)
