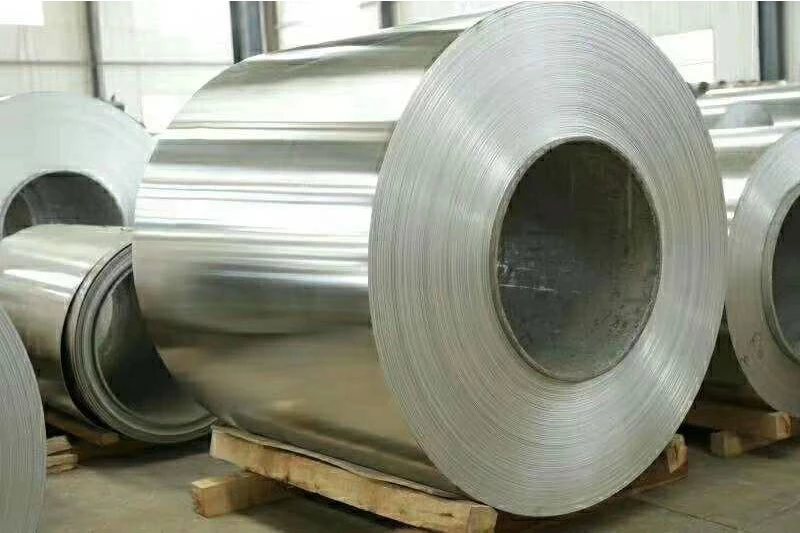

Galvalume Steel Coil DX51D+AZ

The surface of the aluminum zinc plated steel coil presents a unique smooth, flat and gorgeous star, and the basic color is silver white. The special coating structure makes it have excellent corrosion resistance. The normal service life of the aluminized zinc coil can reach 25a, and the heat resistance is very good, which can be used in the high temperature environment of 315 ℃; The coating has good adhesion with the paint film, has good processing performance, and can be punched, sheared, welded, etc; The surface conductivity is very good.

Get more information

Parameters

Product Name DX51D AZ150 0.5mm thickness aluzinc/galvalume/ zincalume Steel Coi
Material DX51D+AZ/DX52D+AZ/DX53D+AZ/DX54D+AZ/DX56D+AZ
Thickness Range 0.15mm-3.0mm
Standard Width 1000mm 1219mm 1250mm 1500mm 2000mm
Length 1000mm 1500mm 2000mm
Coil Diameter 508-610mm
Spangle Regular,zero,minimized,big,skin pass
Weight per roll 3-8ton

Details Show

Details show5
Details show2
Details show1

Process of production

The process flow of aluminum zinc plated sheet is divided into uncoiling process stage, coating process stage and winding process stage.

Process of production

Applications

Our galvanized, galvalume and pre-painted steel products are widely used across various industries, including but not limited to:

Food and the catering industry

Food and the catering industry
Aircraft construction 2 1

Industrial Equipment
‌home appliances

‌Home Appliances
Traffic facilities1

Traffic facilities
Building trade

‌Construction field
Automobile manufacturing2

‌Furniture and Automobile Manufacturing

📦 Packaging & Transportation

✅ Packaging Details

  •  Waterproof plastic film for moisture & rust protection
  •  Kraft paper or galvanized wrapping
  •  Edge protection with metal corners or rubber pads
  •  Secured with steel straps (inner & outer)
  •  Wooden or steel pallets available

🚚 Transportation Options

  •  Full container or bulk shipping (FOB / CIF / CFR)
  • Truck transport to port or designated warehouse
  •  Palletized LCL shipping available for small orders
  •  Complete shipping documents provided (Packing List, Invoice, CO, etc.)
